| Production speed | 2.000 c/h |
| Unit weight | 1.100 Kg |
| Power installed | 5 kW |
| Power supply | 220-380 Volt |
| Operation air pressure | 6 bar |
| Consuption for layer | 10 NI |
| Carton size | Min / Max |
AC 1000
Boxing
9000 b/h

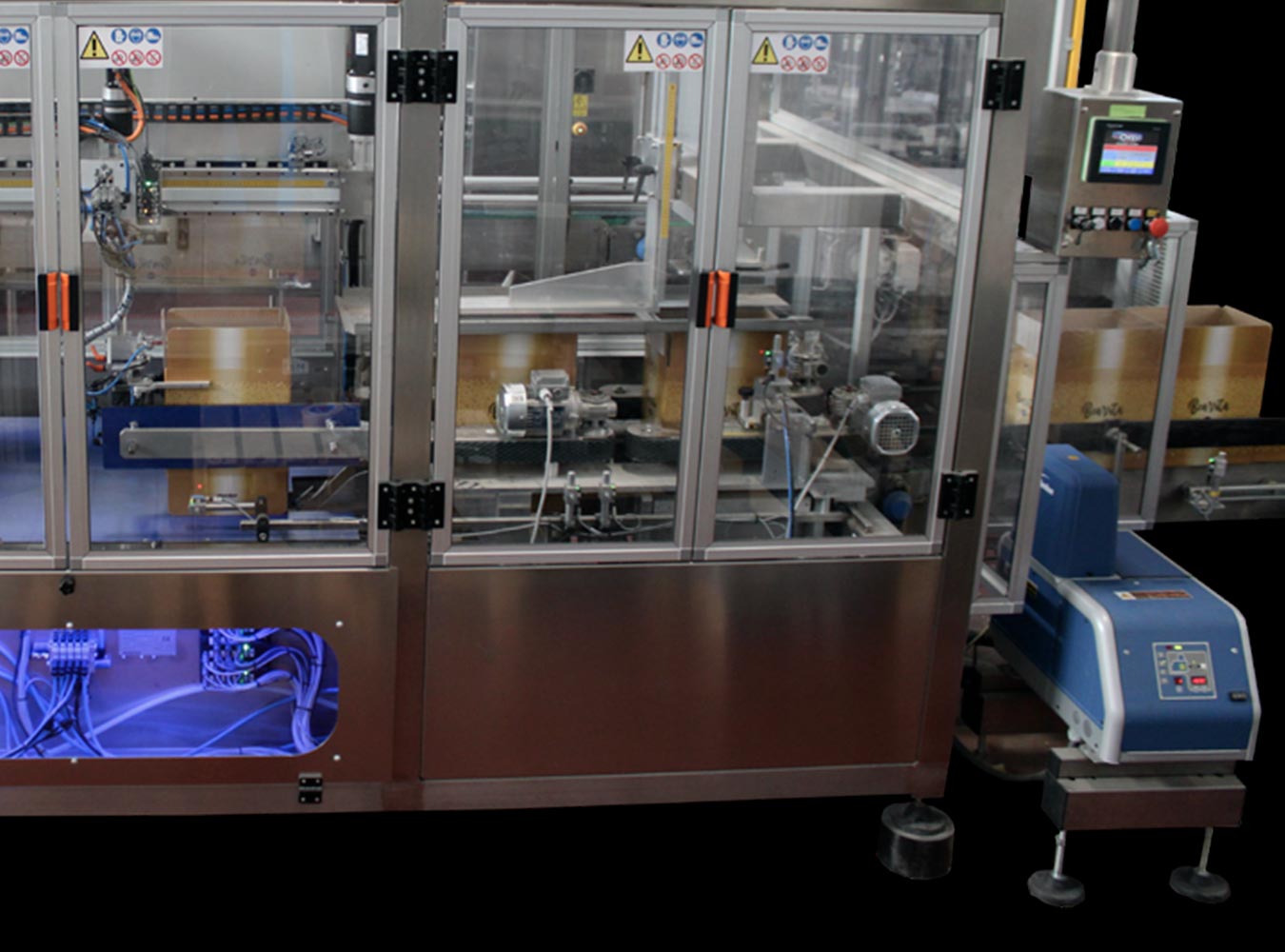

Carton Erector full automatic.
Speed till 2.000 cartons per hour.

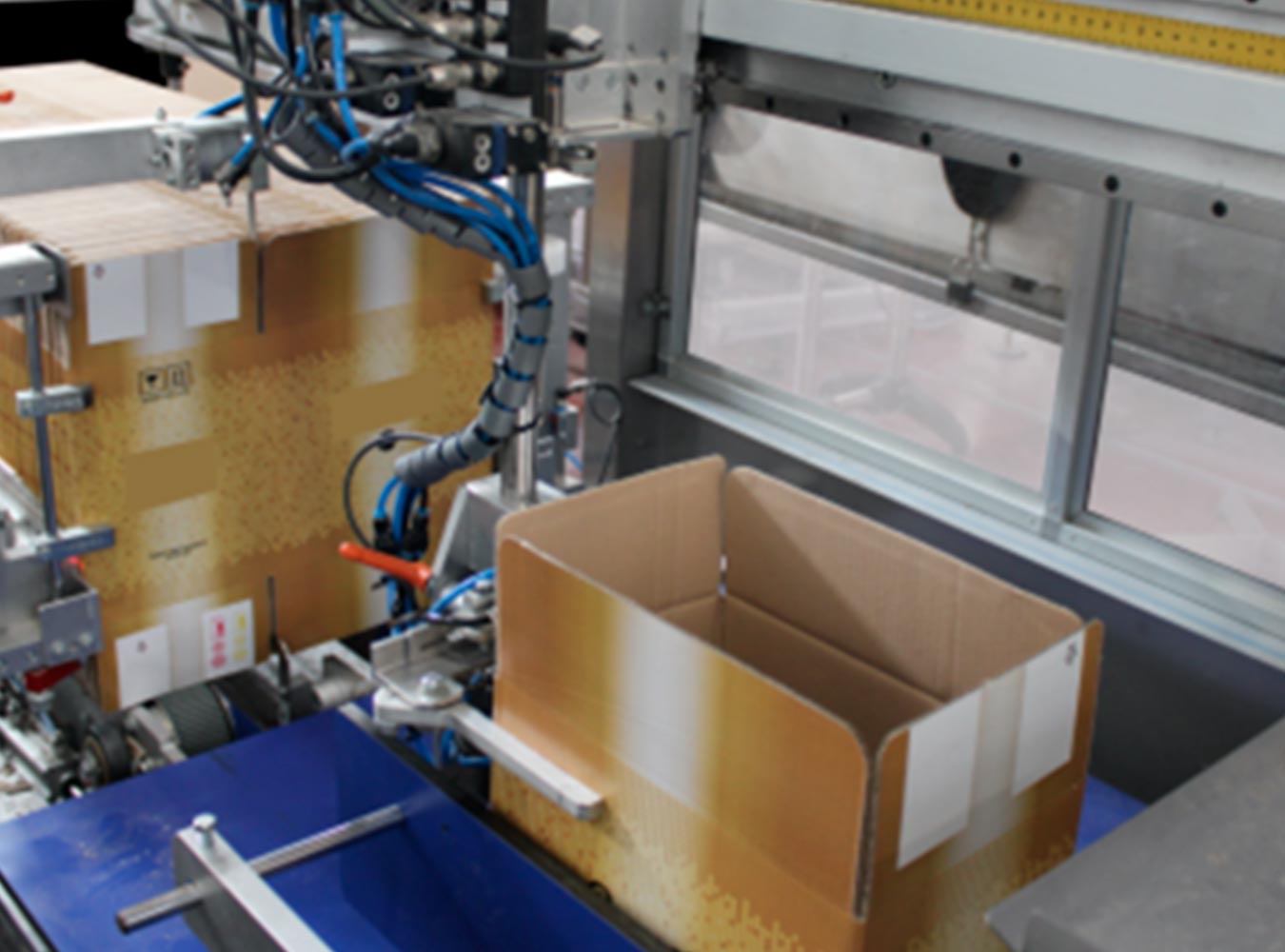

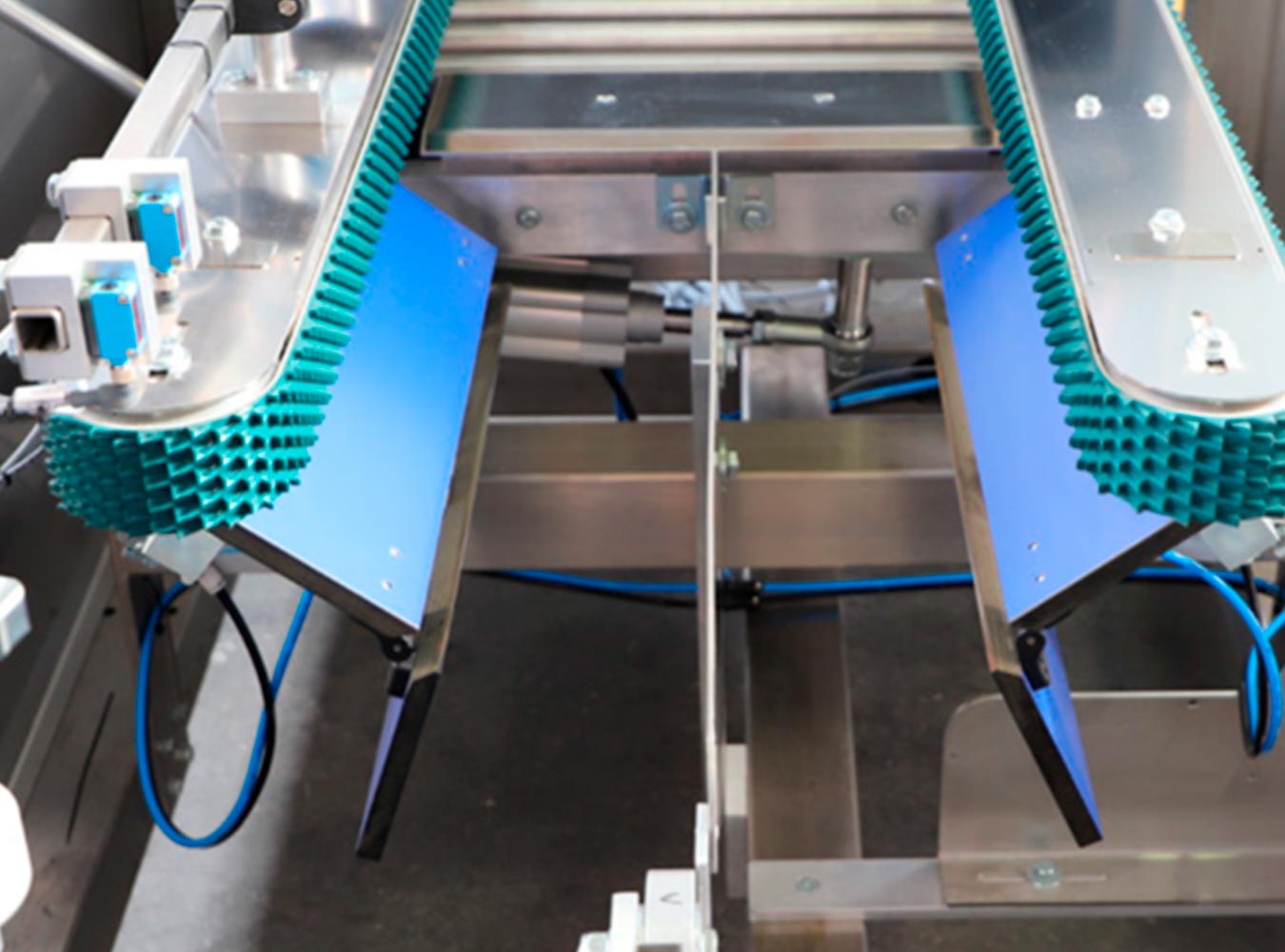

Able to open the american carton, square it and close the lower aps by hot melt.
Characteristics:
- Quick format change
- Stainless steel structure
- Extremely compact
- Modern design
- Good visibility during the manufacture
- Low maintenance
Data sheet
SERIE IS 800
Production speed 1.500 – 2.000 c/h Unit weight 1.000 kg Power installed 2.5 kW Power supply 220-380 Volt Operation air pressure 6 bar Air consumption for cycle 15 NI
discover more
CFS 800
Production speed 2.000 c/h Unit weight 1.100 Kg Type of closure HM Colla a caldo Sopra Power installed HM 5 kW Power supply 220-380 Volt Operation air pressure 6 bar Air consumption for carton 3 NI
discover more
AC 400/40V
Production speed 1.500 c/h Unit weight 1.100 Kg Type of closure HM Colla a caldo Power installed HM 5 kW Power supply 220-380 Volt Operation air pressure 6 bar Consuption for layer 10 Nl Carton size Min Max
